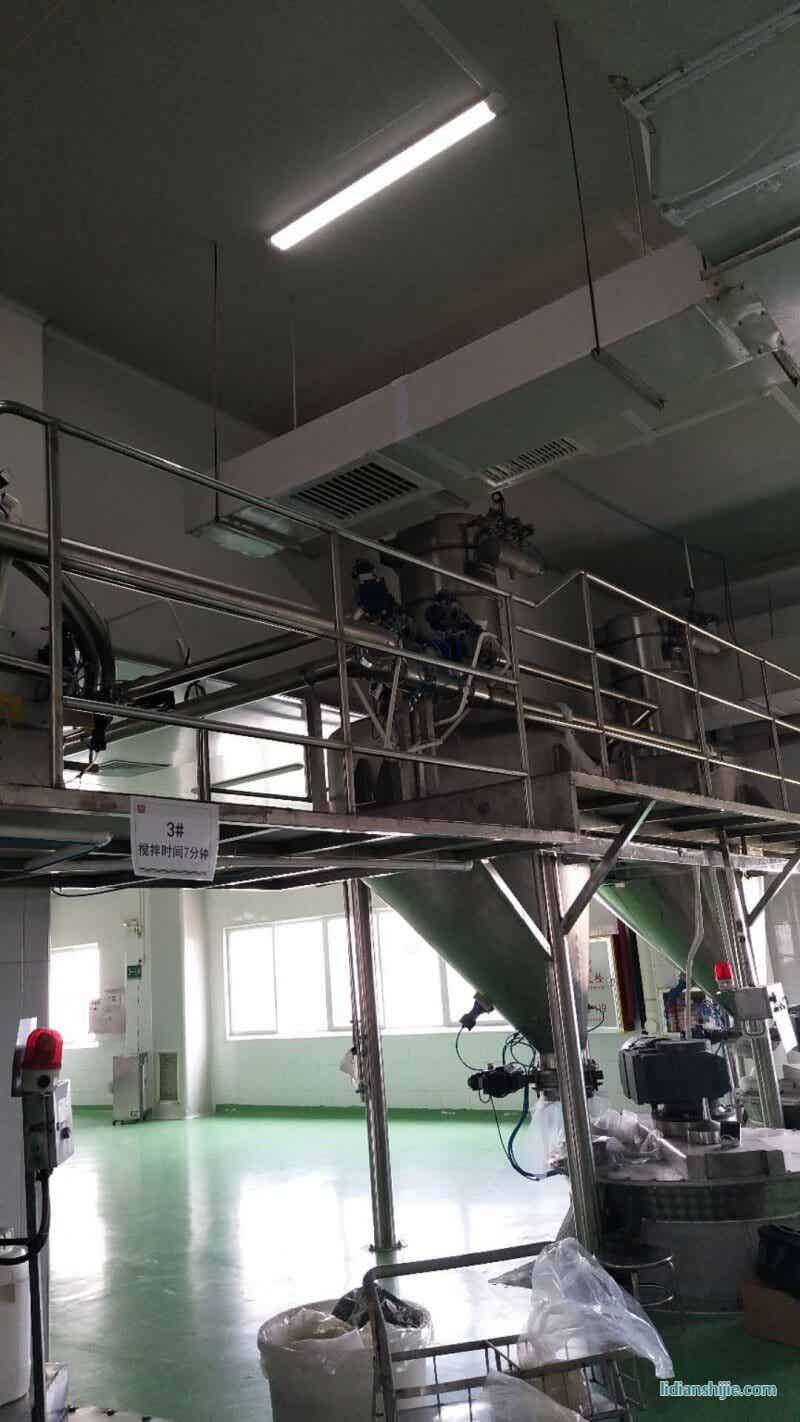

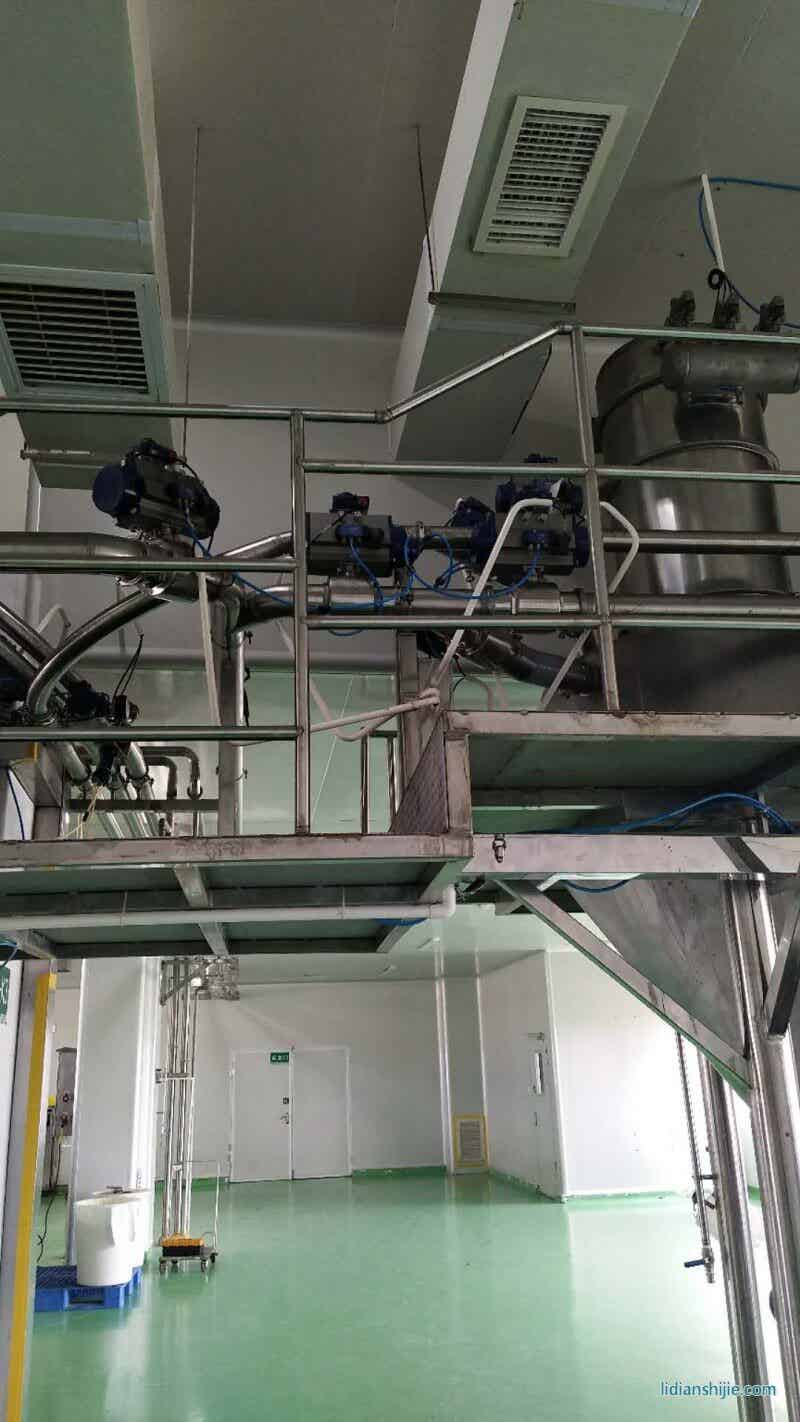

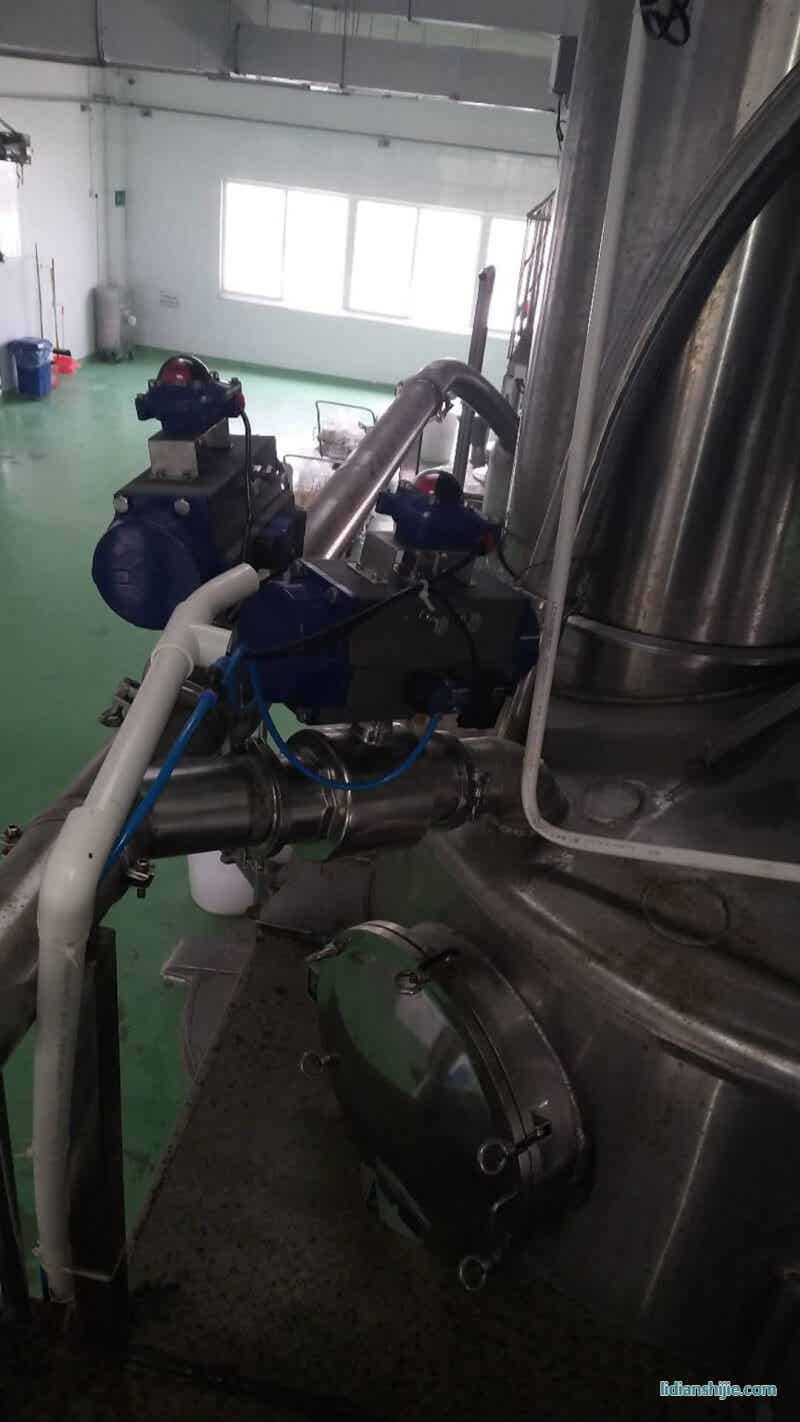

弗雷西氣動衛生級球閥應用現場
材質
手把位置加裝鎖片：100%經過水下100PSI測試開啟關閉完全工作，水壓測試1/4"~2",1500PSI 2-1/2"4" 1200PSI
連接方式：焊接式和卡箍式，其它的SMS DIN RJT IDF螺紋方式等可以根據需要訂制。
|
NO. |
PART NAME |
MATERIAL |
|
1 |
BODY |
CF8M |
|
2 |
CAP |
CF8M |
|
3 |
BALL |
CF8M |
|
4 |
SEAT |
PTFE |
|
5 |
GASKET |
PTFE |
|
6 |
STEM |
316 |
|
7 |
THRUST WASHER |
PTFE |
|
8 |
STEM PACKING |
PTFE |
|
9 |
BOLT |
304 |
|
10 |
HEX NUT |
304 |
|
11 |
BOLT WASHER |
304 |
|
12 |
GLAND |
304 |
|
13 |
WASHER |
304 |
|
14 |
NUT |
304 |
|
15 |
HANDLE |
304 |
|
16 |
PLASTIC COVER |
PLASTIC |
|
17 |
LOCK DEVICE |
304 |
|
18 |
STOP PIN |
304 |
